Villeroy & Boch - ViConnect - 92248400
SKU
V-9224/84/00
In stock

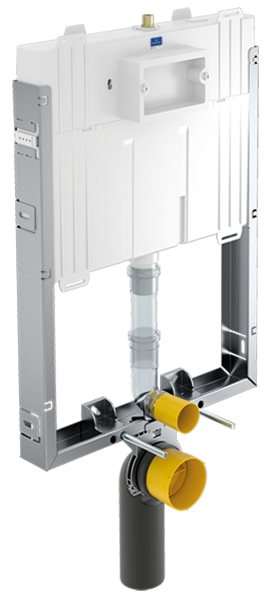

Concealed cistern with metal frame for Brick Wall construction
| WIDTH | 650 mm |
| HEIGHT | 786 mm |
| DEPTH | 80 mm |
| WEIGHT | 6 kg |
VICONNECT TOILET SYSTEM FOR BRICK-WALL CONSTRUCTION
- Easy connection to flush plate via flexible cables with bayonet joint, flexible hose for filling valve, can be tightened by hand, mounting clip, 4 adjustment settings, protection box for access opening can be cut to size, Toilet connecting bend 90° DN 90 (Ø 90) / with reducing sleeve DN 90 (Ø 90) / DN 110 (Ø 110) with protection cap, Complete toilet connection set DN 90 (Ø 90) / 180 mm
- M12 WC fastening materials, fastening materials, reinforcing mesh, without flush plate
- Individual packaging materials
- For combination with: for wall-mounted WC
- Comprising a U-shaped galvanized support frame with 6 fastening lugs
- Front-operated
- With pre-assembled concealed cistern with insulation against condensation with dual flush 3/6 l, adjustable to 3/4,5 l, maximal flush quantity 7.5 l, filling valve Noise Class I, certification marks for concealed cistern: Noise Class I
- For brick-wall construction
| Price | €257.00 |
|---|---|
| Product Brand | VILLEROY & BOCH |
| Price View | Price Range |
